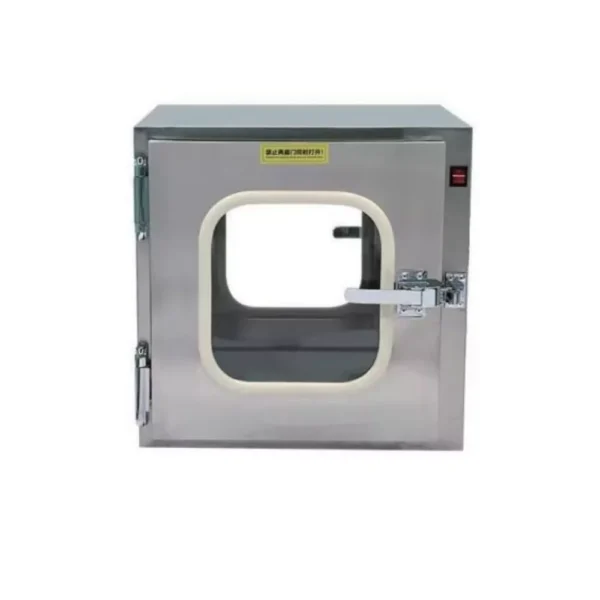

Cleanroom Pass Box FR34

    Mode FR3401 FR3402 FR3403 FR3404 FR3405
    Material 304 Stainless Steel / Cold plate baking paint / 201 Stainless Steel
    Feature Convex door mechanical interlocking pass box Flat door mechanical interlocking pass box Flat door electronic interlock pass box Laminar flow pass box Air shower pass box
    Outer Size 600*600*600mm
    760*660*690mm
    800*800*800mm
    960*860*890mm
    1160*1060*1090mm    		 600*600*600mm
    760*660*mm
    800*800*800mm    		 600*600*600mm
    800*680*760mm    		 600*600*1000mm
    800*670*1200mm
    1000*870*1400mm
    1200*1070*1600mm    		 760*690*1490mm
    960*890*1690mm
    Inner Size 440*540*510mm
    600*600*600mm
    640*740*710mm
    800*800*800mm
    1000*1000*1000mm    		 440*530*480mm
    600*600*600mm
    640*730*680mm    		 400*520*440mm
    600*600*600mm    		 400*530*400mm
    600*600*600mm
    800*800*800mm
    1000*1000*1000mm    		 600*600*600mm
    800*800*800mm
    Remark Sterilizing lamp, intercom is available. Any Size can be customized.
