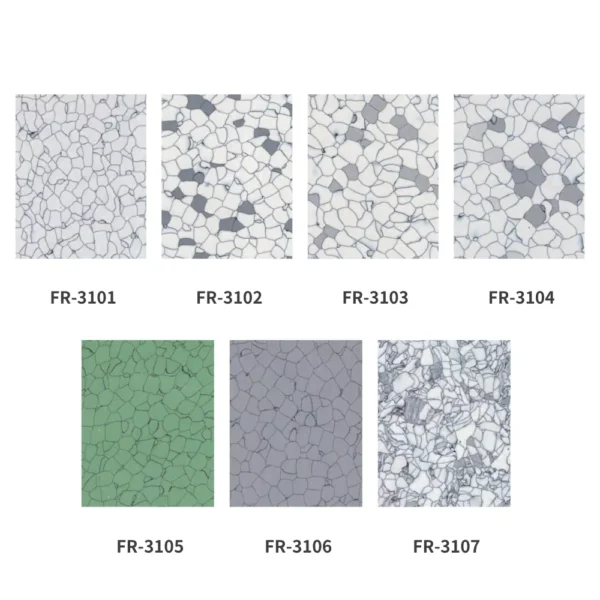

ESD PVC Tile FR31

    Antistatic PVC Tile is made by PVC resin(main material), which combined with special product process that can lead to conductive
    network via PVC Particles interface gaps, and it have the permanent antistatic ability, who looks like marbles that having good
    decorative effort. Application in telecommunications, electronics industry program-controlled room, computer room, cleanroom
    and other antistatic environment.

    Type Conductive tile Dissipative Tile
    Thickness 1.0mm / 2.0mm / 3.0mm 1.0mm / 2.0mm / 3.0mm
    Size 600*600mm 600*600mm
    Weight 1.0mm: 1.9KG/m²
    2.0mm: 3.8KG/m²
    3.0mm: 5.8KG/m²    		 1.0mm: 1.9KG/m²
    2.0mm: 3.8KG/m²
    3.0mm: 5.8KG/m²
    Electric properties 2.5 X 10^4-10^6Ω 10^6-10^9Ω
    Decay Time 0.4S 0.4S
    Charge Voltage 70 70
    Combustion properties 0.35S/FV-0 0.35S/FV-0
    Flame spread <75 <75
    Smoke density <450 <450
    Anti-wear properties <2.0mm³ <2.0mm³
    Critical radiant flux >1.8W/cm2 (Class 1, NFPA 101) >1.8W/cm2 (Class 1, NFPA 101)
    Color fastness At least 6 At least 6
